Breakout Cable
Application
Breakout Cable is designed for routing to different locations and direct termination of fibers in the field. The cable is mostly suitable for pre-terminated cable assemblies.
Description
The cable contains 2 to 36 fibers which are individually buffered tight or semi-tight construction. Each fiber is individually protected in a mini cable. Aramid yarn will be applied either inside the mini cable or within the inner jacket of the cable. The color coded mini cable may be stranded around a central strength member which can be either FRP or flexible all-dielectric. Outer Jacket may be PVC or LSZH.

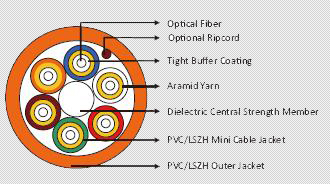

Construction
 |
 |
Propriétés physiques
Nombre fibres |
Poids nominal(kg/km) |
Poids nominal(lb/kft) |
Diamètre extérieur nominal(mm) |
Diamètre extérieur nominal(in) |
Maximum les tractions |
|
Installation(N/Ib) |
In Service(N/Ib) |
|||||
2 |
50．0 |
33．56 |
5．5 |
0．217 |
1200/270 |
490/100 |
6 |
110．0 |
73．83 |
12．5 |
0．493 |
2000/450 |
800/180 |
12 |
160．0 |
107．38 |
13．0 |
0．512 |
3515/790 |
1200/270 |
24 |
230．0 |
154．36 |
15．5 |
0．611 |
5470/1230 |
2000/450 |
Propriétés mécaniques
| Rayon de courbure minimum: | Force de compression maximale: | 3000N for unarmoured | |
| Under installation: | 20×OD | 5000N for armoured | |
| During operation | 10×OD for unarmoured cables | Repeated Impact: | 2.9 N.m (J) 3×2 impacts |
| 10×OD for unarmoured cables | Twist (Torsion): | 180×10 times, 125×OD | |
| Gamme de température: | Cyclic Flexing: | 25 cycles for armoured cables. | |
| Operating Temperature Range: | -40℃(-40℉) to +70℃(+158℉) | 100 cycles for unarmoured cables. | |
| Storage Temperature Range: | -50℃(-58℉) to +70℃(+158℉) | Résistance à l'écrasement: | 1750N/cm (1000lb/in) |
Fibre de conformité
Température Cyclisme |
IEC60794-1-2-F2 |
Safety Compliance
General Purpose e année |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1 |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Norme de conformité
GR409-CORE TIA/EIA 568B.3 ICEA-S - 83-596
Fonctions
• Most rugged and "user friendly" cable design for Local Area Networks
• For installations where ease of termination and termination costs are important factors
• Short and moderate distance links between buildings or within a building, where multiple termination points are needed
• Breakout cables are designed for direct termination with standard connectors
• Cable ideal for direct pulling with wire mesh grips
• Suitable for both indoor and outdoor use -- no need to for splicing at the building entrance
• Flame-retardant or LSZH version for indoor installations
• Fungus-resistant, water-resistant, and UV-resistant for outdoor use
• High quality tight-buffered coating on each fi ber for environmental and mechanical protection
